Mini-Humbucker

Pickup OHMS are approximate as pickups are wound when
ordered.  Most of the pickups here can be altered to customers
needs- including wire gauge,magnet type, color, string spacing and hook up leads.

Free shipping within the USA if yours
is an international order please email
us at
admin@sentellpickups.net for
shipping prices to your country.

MH12

Holy Moly

52mm
9.2k ohms
Handwound with 42 awg
All fiber board bobbins
12 Alnico II rod magnets
Metal base plate
Single conductor braided ground wire
Wax Potted
Chrome ring/cover/ springs/screws included


$105.00

MH17

Hello! I have with me the Anomaly #19 and Biggy Smalls. woow! are amazing i love its power and tone! I am very impressed!!
Great success for Sentell pickups!
Many thanks Chistine!

Best regards
Salvador

Biggy Smalls
Mini Humbucker

16.3K OHMS
screw side-
50mm string spread
43awg
blade side-
52mm string spread
45 awg
Four conductor hookup leads
Fits Firebird guitar cavity

$100.00

MH09

CUSTOM ZEBRA
MINI HUMBUCKER

Fits mini humbucker route
5Omm stringspread
10.3k 0hms
Wound with 43 awg
Four conductor hook-up wire
Cover side-
Fiberboard flatwork bobbin,

Alnico V rod magnets,
south to strings


Black side-
Black acrylic top with fiberboard bottom,

Alnico II rod magnets,

north to strings
Wax Potted
Black ring/springs/stainless steel screws included


$107.00

MH02

Single Coil
Firebird size

Neck- 7.2k  0hms Alnico-II
Bridge-9.5k 0hms Alnico-II
42 awg
Two conductor
Wax potted
50 mm string spread

$95.00

MH10

MINI HUMBUCKER
Fits in Firebird
52mm
18.2k 0hms
Handwound with 44 awg
Kick-out the jams
12 Alnico II rod magnets
Metal base plate
Four conductor hook-up wire
Wax Potted

Ring/ stainless steel screws included
Pickup comes prewired in series
for humcancelling


$95.00

MH13

MINI HUMBUCKER

Firebird sized
Neck- 10.5k ohms
Bridge- 11.1k ohms
Wound with 44  AWG
Alnico V rod magnets

combined with
Cer 5 bar magnets
Single conductor braided ground wire
Wax Potted
Brass base plate

$95.00

MH01

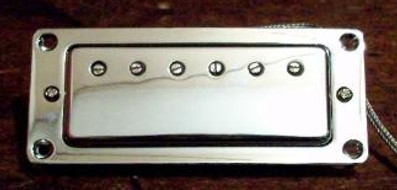

Mini Humbucker w/ chrome ring:

14.8 K ohms (extra hot)

44 awg
Alnico V bar magnet
Single conductor braided shielded
ground wire
Works in neck or bridge position


$105.00

MH05

DUAL SINGLE
Sweet Tone

Twelve Alnico II rod magnets

mini humbucker
15.4K ohms
Handwound with 46 awg
52mm string spacing
20mm wide
Four conductor hookup leads
Wax potted

$105.00

MH18

Strat Size Mini Humbucker

19.7K ohms
Handwound with 45awg
Ceramic bar magnet
Four conductor hook-up leads
Wax potted
Springs and screws included
Will work in any position

$95.00
